PRODUCT OVERVIEW
Efficient Stable Intelligent Cutting Safe and Eco-friendly
The GD series laser cutting machine adopts a fully enclosed protective structure and a dual-platform automatic exchange design, which ensures operational safety while significantly reducing loading and unloading waiting time, enabling continuous and efficient production. For convenient transportation, installation, and site layout, the entire machine bed features a detachable design, reducing transport difficulty and adapting to different factory conditions and installation requirements.
COST SAVING

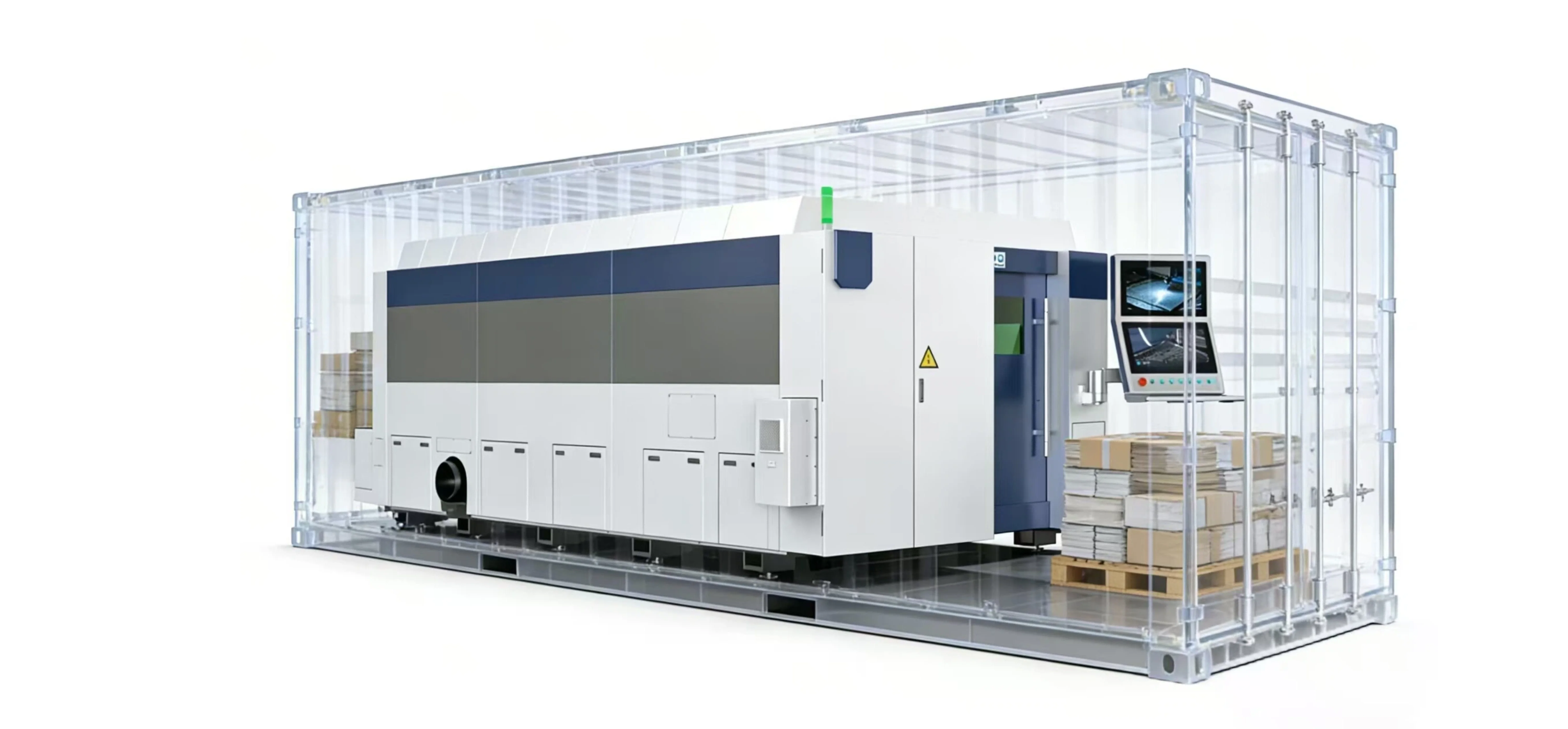

Cost-Effective Containerized Shipping Solution
For dual-platform machines with a width of two meters or more, we adopt a split-type transportation design. The equipment can be disassembled into easily transportable components. This flexible transportation method ensures that the machine can be easily loaded into a 40HC container without the need for a 40OT container, effectively reducing the number of containers required for transportation and thus significantly reducing ocean freight costs
STURDY AND GREEN

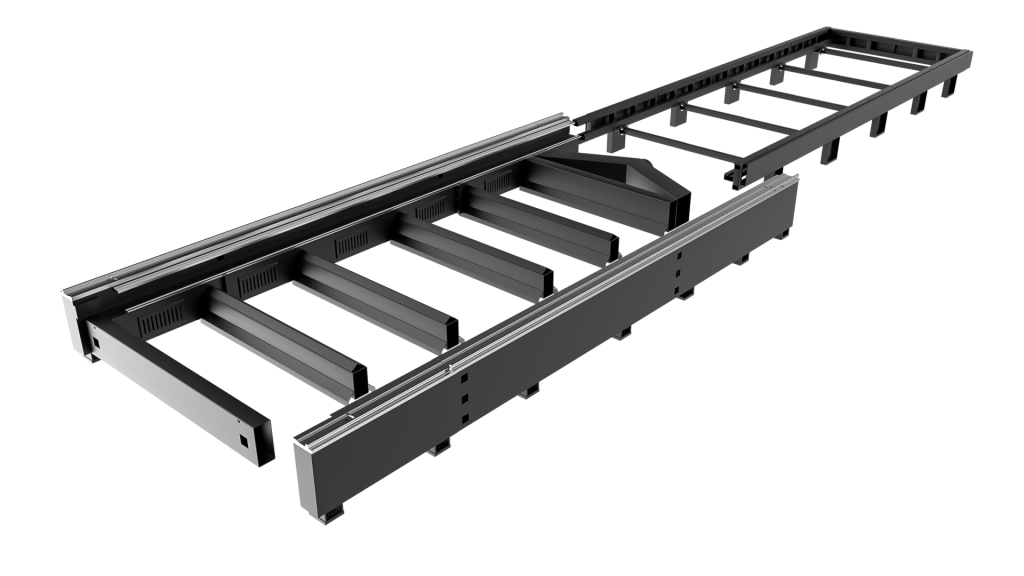

Stable Structure & Efficient Dust Removal
The equipment features a split-type bed design, making disassembly and assembly convenient, and transportation and installation more efficient and worry-free. The bed is made of thick-walled steel structure that has undergone high-temperature tempering treatment, providing greater rigidity and stability. It is also equipped with a zoned dust removal system, which can effectively purify cutting fumes, ensuring that the machine can stably, cleanly, and efficiently complete various cutting processes.
STABLILITY AND HIGH SPEED
Stable & Reliable Lightweight Aviation Grade Aluminum Beam
The gantry of the laser cutting machine is refined from aviation-grade aluminum, achieving lightweight design while ensuring structural stability and sufficient rigidity. The lighter gantry greatly reduces motion load, effectively improves dynamic response and operating speed, delivers a strong acceleration of up to 1.5G, and makes high-speed cutting smoother and more efficient.
EASY TO USE AND PROGRAM
I n t e l l i g e n t C u t t i n g H e a d a n d Professional Software
Covers 3/4/6/8/9/A series for 3–40 KW power applications. Integrates dual beam spot, closed-loop focus control, automatic centering, intelligent piercing, auto recut. Features gas pressure monitoring, window temperature monitoring, stray light monitoring. Equipped with collision prevention and explosion protection for safe, stable operation
EASY TO USE
Machine electrical cabinet
The electrical components area is separated from the processing area, and the electrical cabinet is arranged at the rear, which effectively improves the service life and stability of the electrical components.
Related Technologies
Spec sheet
Model
GD4020
GD6020
GD6525
GD8025
Laser Power
3-30KW
3-30KW
3-30KW
3-30KW
Cutting Area(Length*Width)
4050mmx2050mm
6050mm×2050mm
6550mm×2550mm
8050×2550mm
Maximum Acceleration
1.2 G
1.2 G
1.2 G
1.2 G
X/Y-axis positioning accuracy
0.05mm
0.05mm
0.05mm
0.05mm
X/Y-axis repositioning accuracy
0.025mm
0.025mm
0.025mm
0.025mm
