STANDARD CONTROL

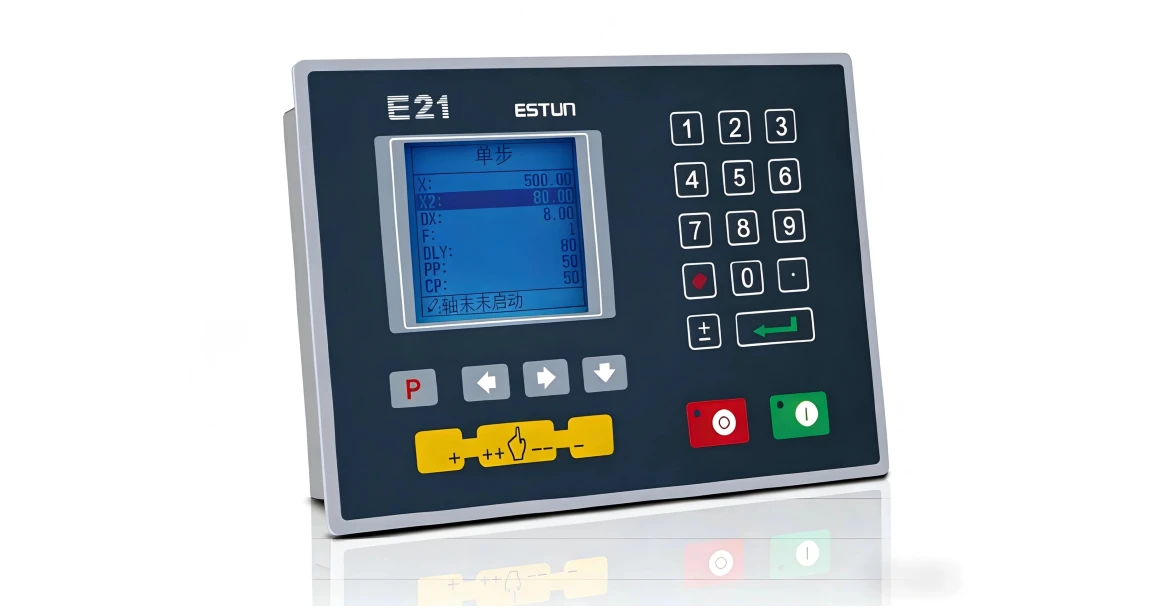

Estun E21S Control
E21s controller easy cnc system operation surface,significantly improving the operation precisionand comfortability.Rear material control,Control ordinary motors or frequency converters,Intelligent Positioning,Dual programmable digital output,40 step storage, 25 steps per program,Unilateral positioning,Retreat function,Parameter backup and recovery.

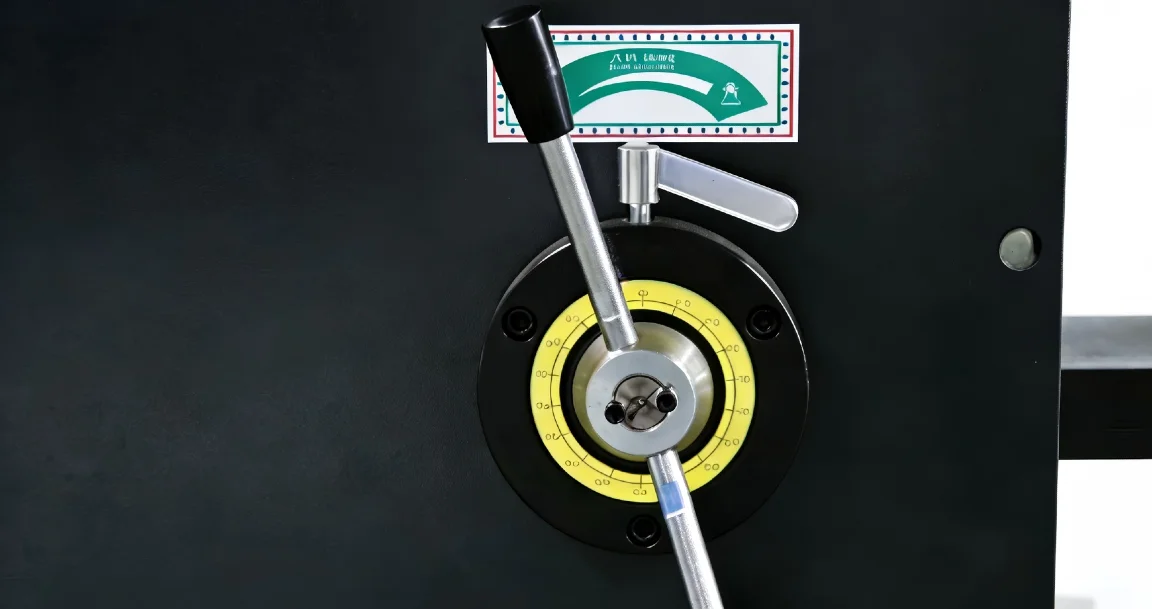

BLADE GAP ADJUSTMENT
Manua Adjustment Device For Blade
Equipped with an eccentric wheel mechanism, the machine allows manual adjustment of blade clearance through a scale dial. Its user-friendly operation makes it suitable for shearing plates of differentthicknesses and materials.

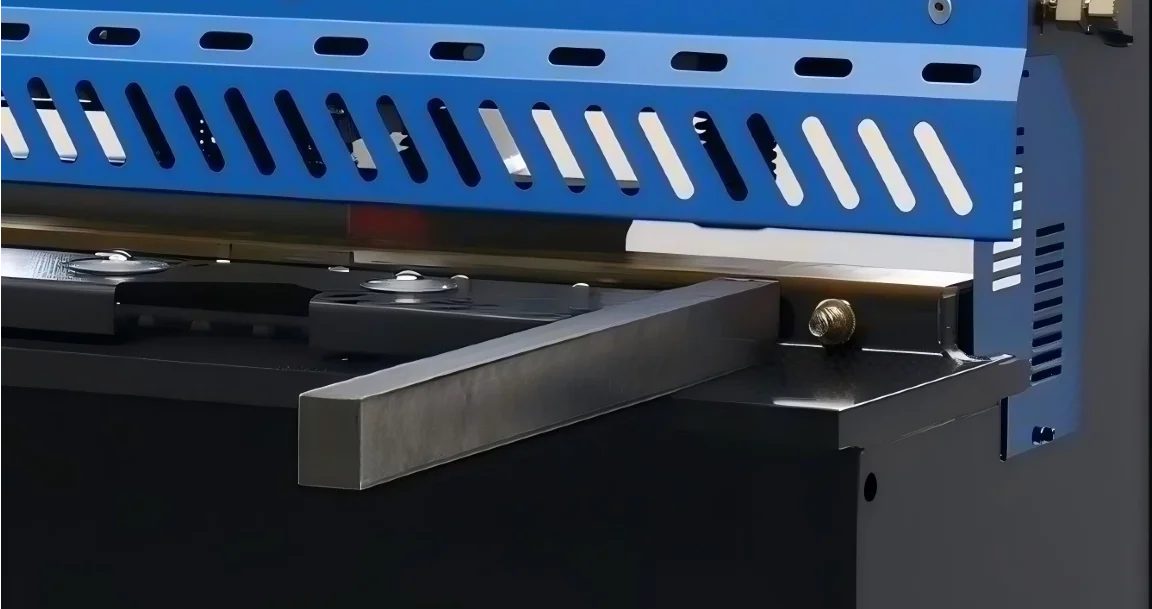

FRONT ARMS
Vertical Adjustment And Front Positioning Device
The ball is installed on the arm with a ruler, which can reduce wear and easily and accurately feed the machine.

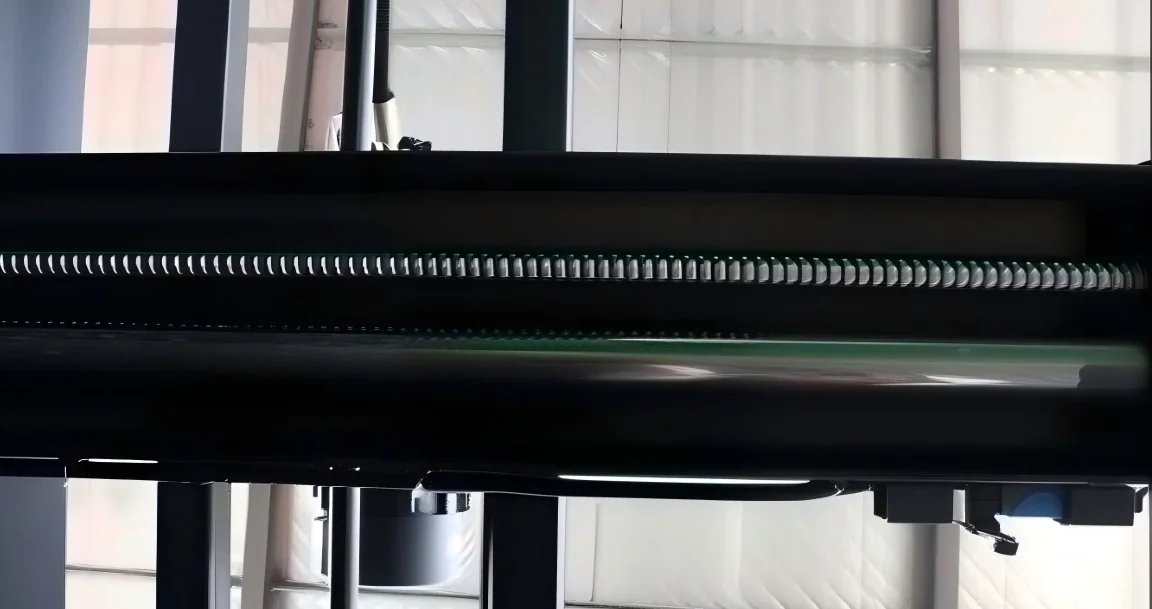

BALL SCREW AND LINER GUIDE
Taiwan HIWIN Or TBI Ball Screw And Linear Guide
Ball screw and linear guide adopt to ensure the accuracy of back gear movement.
CUTTING BLADE
Wear Resistant Blades
It adopts a rectangular blade,Material:9crsi, the four cutting edges can be turned over, and the blade gap adopts a stepless adjustment mechanism to adapt to the shearing needs of different plate thicknesses and materials.
OPTION CONTROL

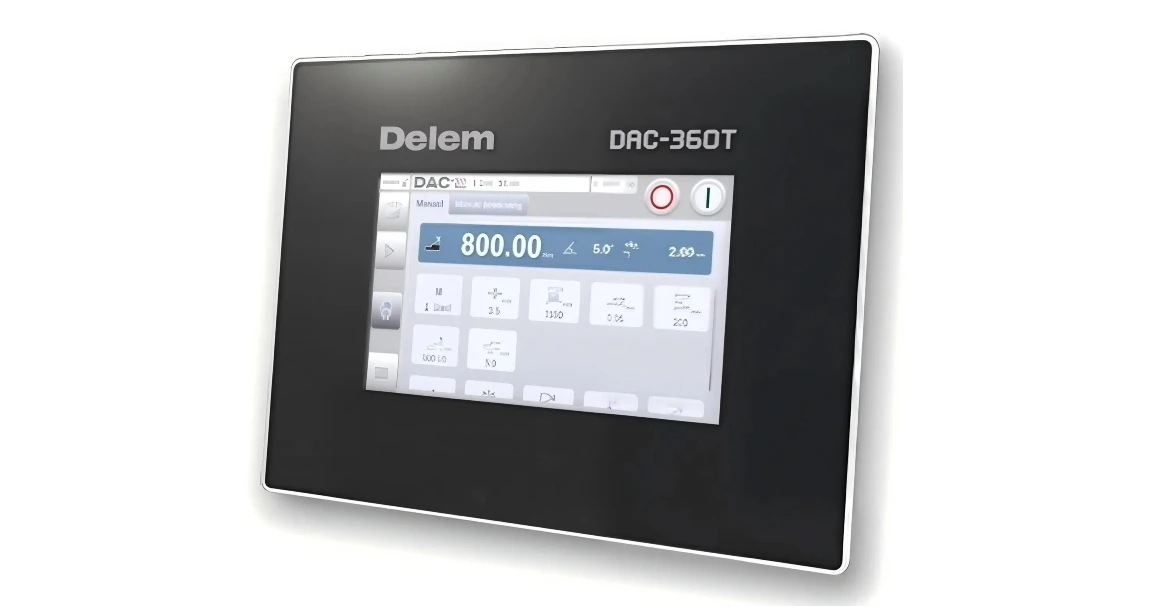

Delem 360T Control
This controller features a panel-based housing and a bright LCD screen. It offers comprehensive functions including back/front gauge control, retract operation, cutting angle and gap adjustment, stroke length limitation, manual movement of all axes, and force control. Additional capabilities include sheet thickness measurement, a return-to-sender function.
Related Technologies

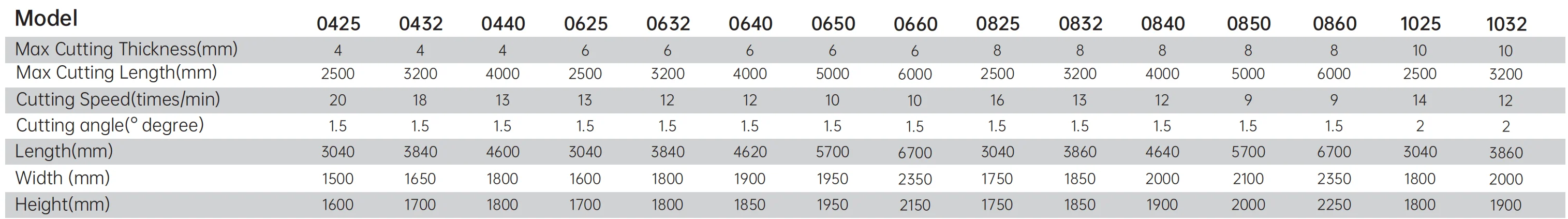

Spec sheet
Related Products

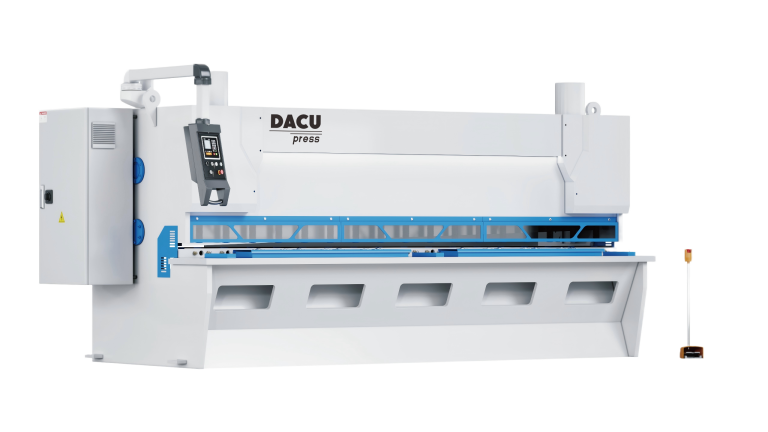

QC11K PRO SHEAR
