STANDARD CONTROL
Estun E21S Control
E21s controller easy cnc system operation surface,significantly improving the operation precisionand comfortability.Rear material control,Control ordinary motors or frequency converters,Intelligent Positioning,Dual programmable digital output,40 step storage, 25 steps per program,Unilateral positioning,Retreat function,Parameter backup and recovery

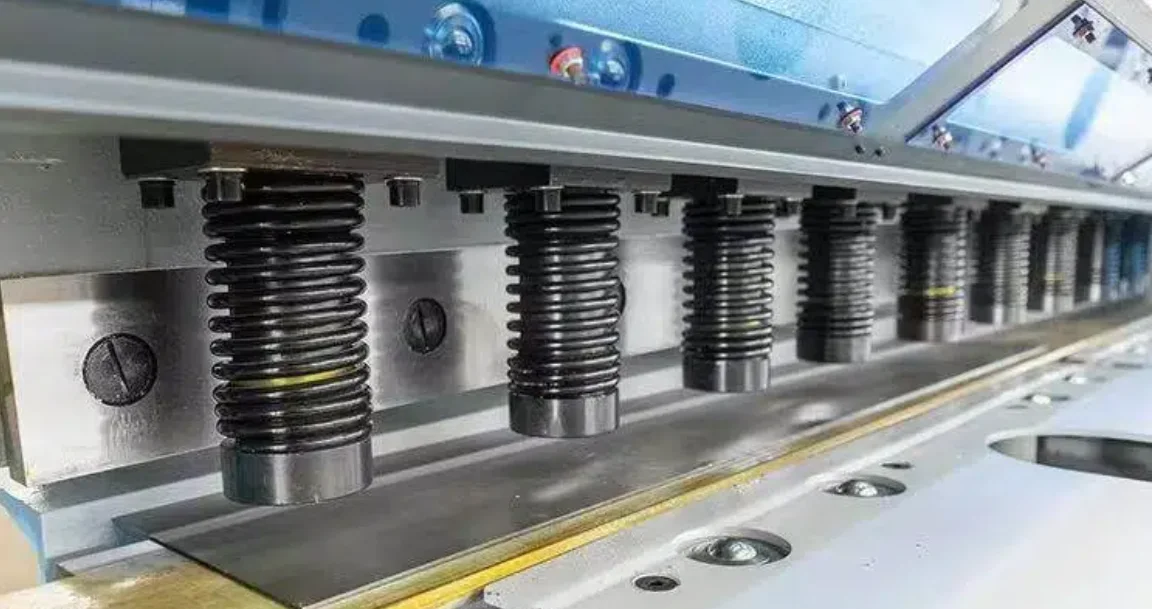

SPRING PRESSURE HEAD
Fixed Board To Ensure Dimensional Accuracy
Fixed board to ensure dimensional accuracy, with rubber pads at the bottom of the presser foot to protect the surface of the board, tools, and equipment. The stability of the board can prevent tool breakage,extend tool life, prevent board vibration from impacting the frame,prevent board ejection, and prevent material jamming.

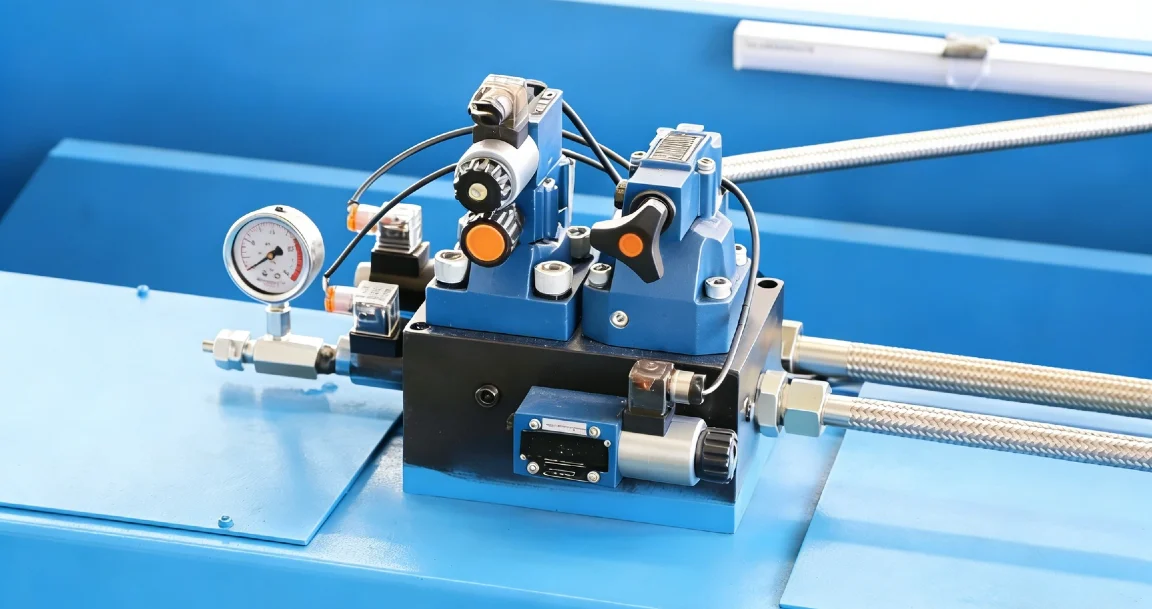

HYDRAULIC VALVE
Intelligent Germany Bosch-Rexroth
As an internationally renowned brand, Rexroth hydraulic valve group delivers exceptional performance. Thanks to its hydraulic overload protection, oil leakage and valve blockage are effectively minimized.Reliable and durable, precise and efficient control, modular integration, and intelligent safety are the benchmark choices for industrial and engineering machinery hydraulic systems.

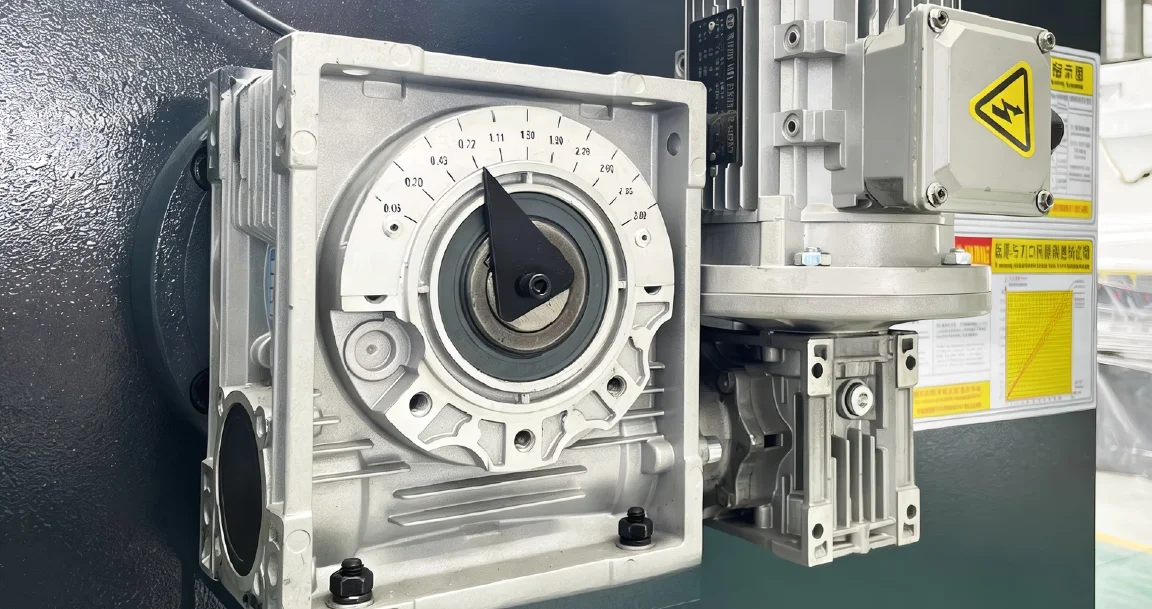

BLADE GAP ADJUSTMENT
Automatic Adjustment Device For Blade Clearance
There is a table on the machine that shows the relationship between blade clearance and plate thickness. Adjust the blade clearance using the + or – buttons on the adjustment device according to the data in the table.

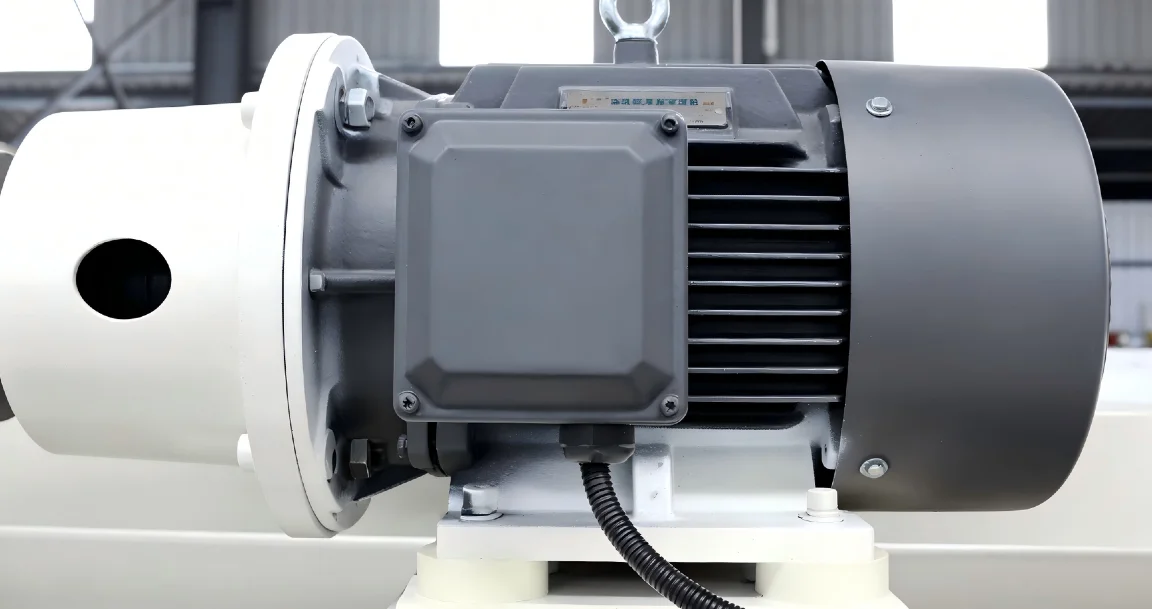

MAIN MOTOR
International Siemens Brand Motors Ensure Stable Voltage
The hydraulic guillotine shearing machine uses the world-renowned brand “Siemens motor”, which has strong power and long service life. Germany’s Siemens has high efficiency and low noise. Low starting current and strong overload capacity.
OPTION CONTROL
Delem 360T Control
This controller features a panel-based housing and a bright LCD screen.It offers comprehensive functions including back/front gauge control, retract operation, cutting angle and gap adjustment, stroke length limitation, manual movement of all axes, and force control. Additional capabilities include sheet thickness measurement, a return-to-sender function.
Related Technologies

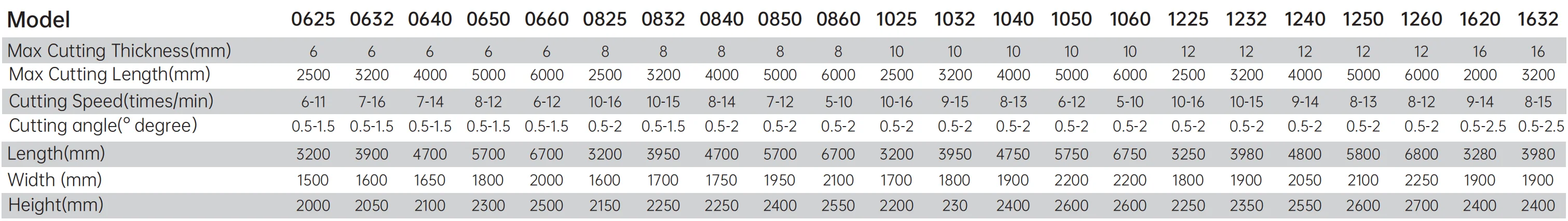

Spec sheet
