PRODUCT OVERVIEW

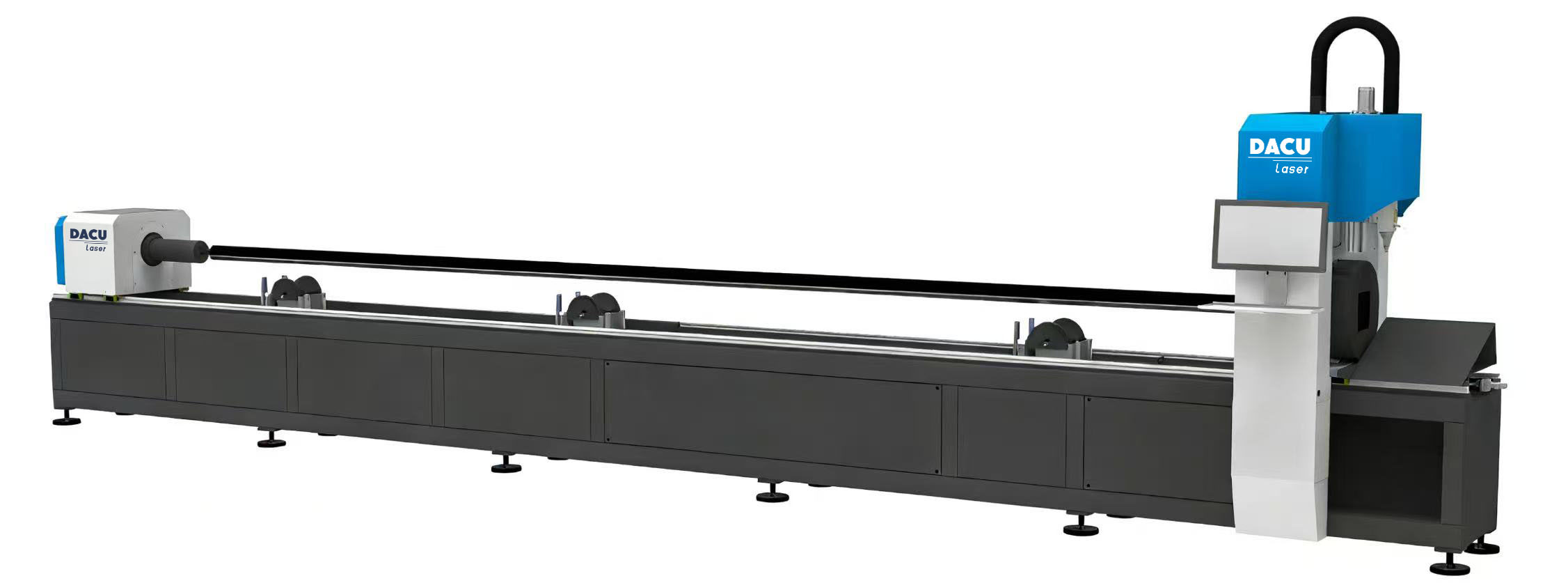

High-Speed Cutting Solution For Small-Diameter Tubes
The TG12-6012A is a time-saving, labor-saving and easy-to-operate laser tube cutting machine. Its efficiency is 5–6 times that of traditional machines.
It features minimal tailings and high material utilization, greatly reducing material waste and post-processing.
This machine improves productivity and reduces costs, making it an ideal solution for tube processing.
PNEUMATIC CHUCK
Square-Round Chuck
The square-round chuck serves as an independent rotating spindle for laser tube cutters, enabling fast pneumatic clamping. Its direct cylinder drive provides stable, wide-range clamping and precise software control.
With a simple and reliable structure, it features a low failure rate, low inertia, and low energy consumption. The short axial design minimizes tailings, while the square bore accommodates larger square tubes, expanding the application range and reducing costs.
SAVE YOUR TIME
Semi Auto Loading Or Fully Auto Loading System（Optional）
Reduces manual labor and lowers workforce intensity.
Improves feeding efficiency and overall productivity.
Ensures safer operation and fewer handling risks.
Shortens non-cutting time and boosts machine utilization.
MINIMAL TAILINGS
Chuck Moving Front & Back Of Cutting Head Saving Waste
The chuck moving design allows the chuck to move in front of and behind the cutting head, enabling processing of short tubes and minimizing leftover material. This greatly reduces material waste and improves material utilization.
With flexible and stable movement, it enhances processing efficiency and expands the application range, helping users lower production costs and achieve higher economic benefits.
EASY TO USE
Cutting System & Cutting Head with Standard Configuration

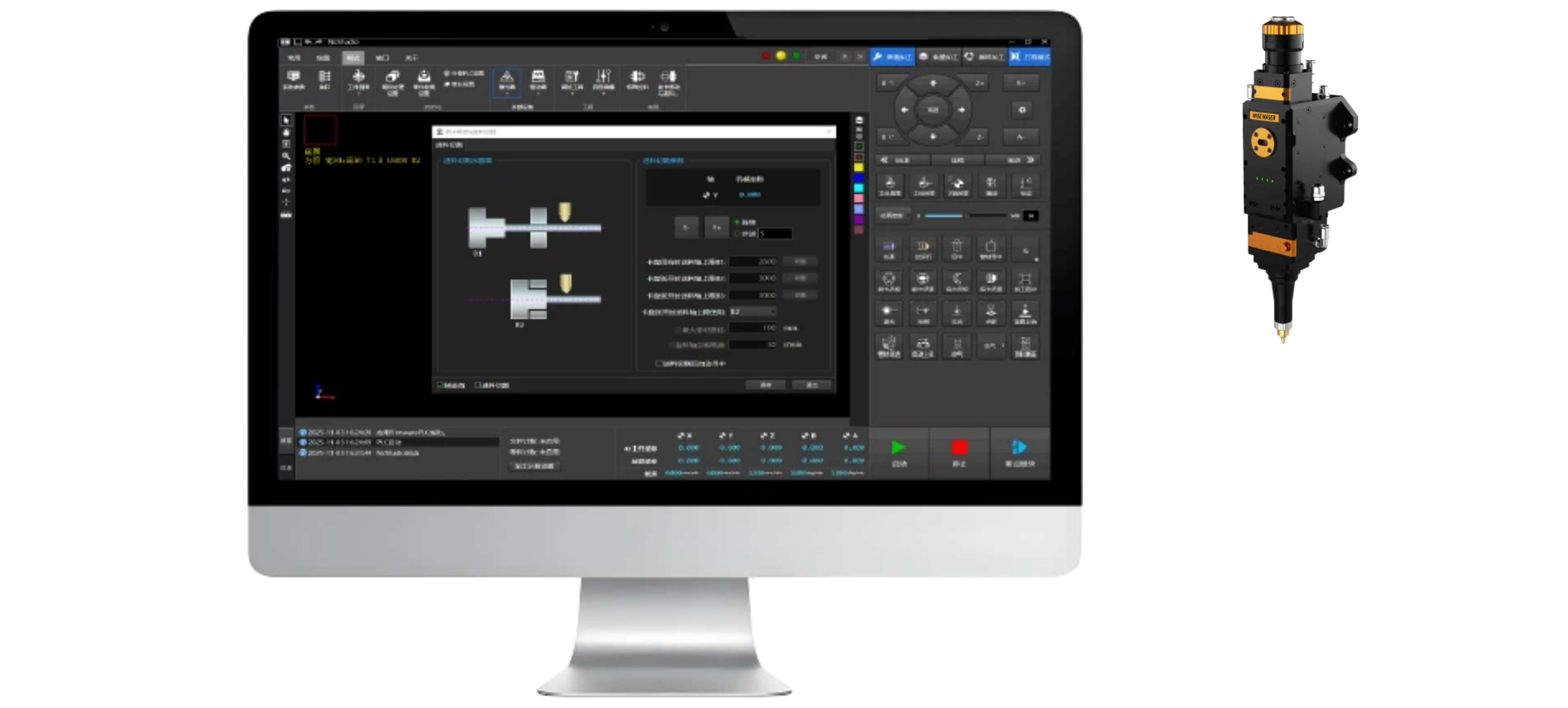

Weihong NcStudio-V15 tube cutting control system with WT04 cutting head and intelligent nesting software provides an integrated solution for tube laser cutting.
It supports round, square, angle, channel and special-shaped tubes, with precise cutting, intelligent collision avoidance and chuck overtravel cutting.
*Options available: WiseCAM Tube nesting software, which optimizes material layout and improves utilization, achieving high precision, stability and efficiency.
OPTIONS
High-Performance Cutting System, Cutting Head & Nesting Software（Optional）
Bochu FSCUT tube cutting system, paired with BLT cutting head and TubePro software, is a high-efficiency bus-based solution for tube processing.
It features adaptive material pulling, anti-empty cutting, one-click flying cutting and optional bevel processing, ensuring high-precision cutting and minimal leftover material.
TubesT nesting software seamlessly integrates with TubePro, enabling intelligent nesting and common-edge cutting to maximize material utilization— an ideal choice for round and square tube processing in the fitness equipment, hardware and escalator guardrail industries.
Related Technologies
Spec sheet
Model
TG12-6012A
Laser Power
1.5-6kW
Cutting Capacity of Round /Square Tube
∅ 10-120mm / □ 10×10-120×120mm
The Range of Tube Length
6500mm
Acceleration
1.6G
Max Loading Capacity (Single)
60kg
Related Products
TG16 Series

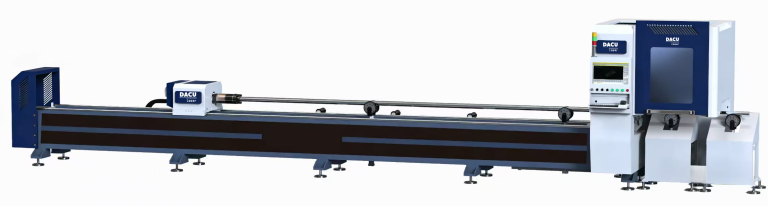

TG24 Series
