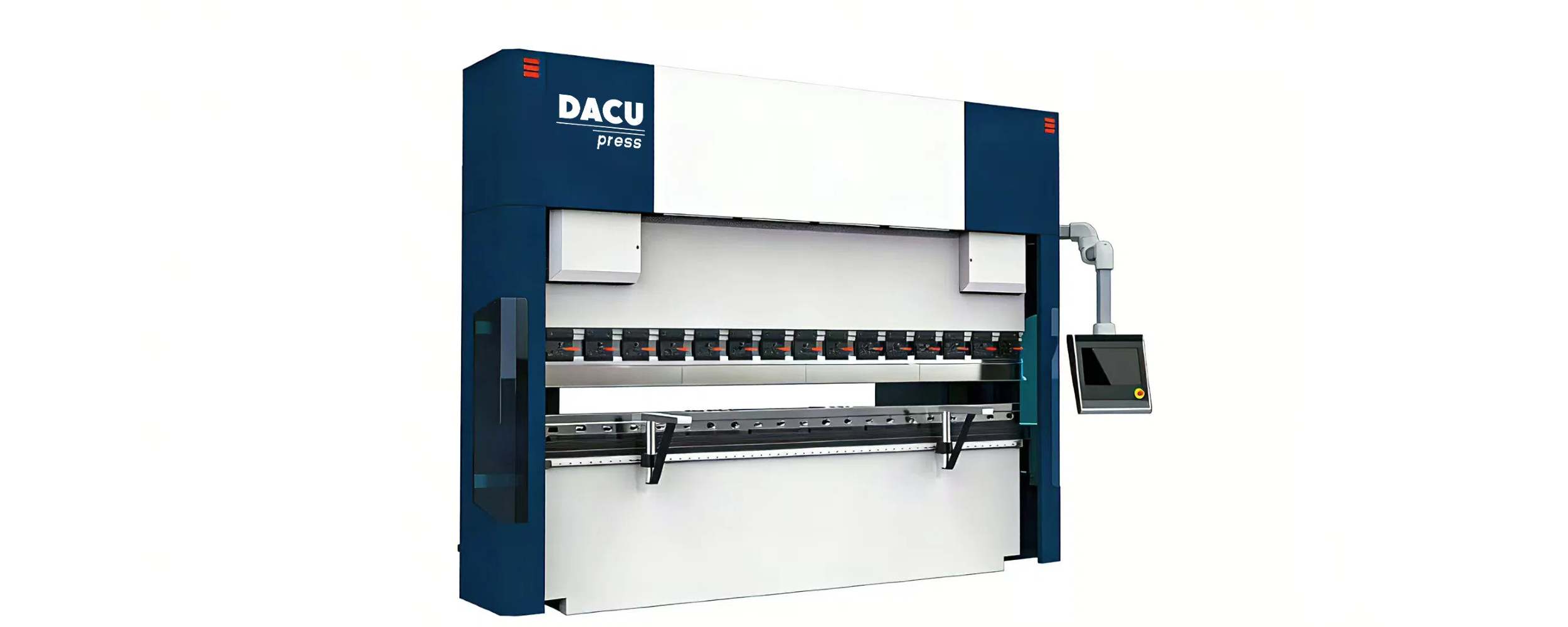

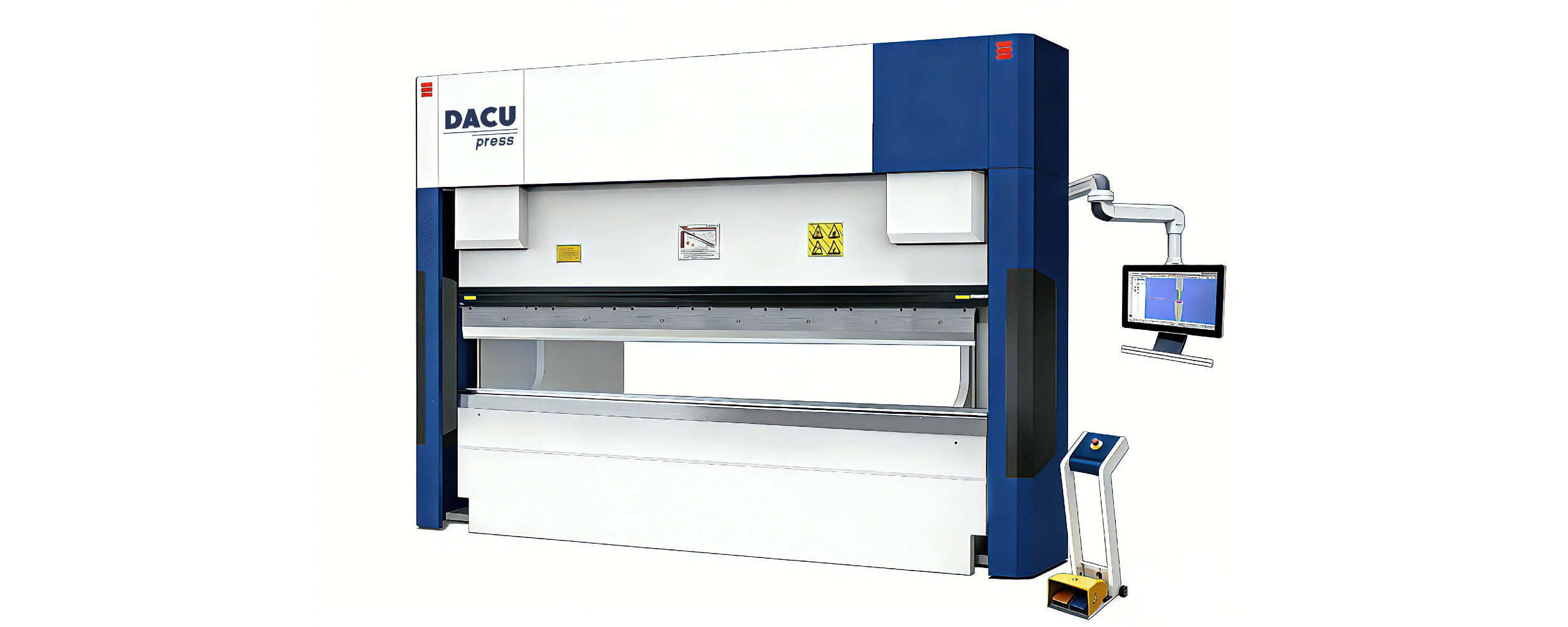

PRODUCT OVERVIEW
Standard Configuration
1.Y1,Y2,X,R CNC 4 Axes (X + R Servo)
2.DA53TX CNC Control Unit
3.±0,03 accuracy SERVO motorized back gauge. X=650mm, R=250mm
4.Quick clamp Promecam punch tool holder
5.Sliding front sheet support arms with hand Wheel
6.Motorized Anti-deflection crowning with original Wila wedges.
7.GIVI optic linear scales
8.Standard punch tools ( H: 150, 85° , R:08 )
9.Standard die tools ( 55×55mm, 4V Die, V=16-24-32-48mm, 85°，H:55)
10.LED illumination on RAM
11.Combining Rexroth hydraulic system and Hytek units, it ensures high
accuracy for bending machine applications
SMART CONTROL

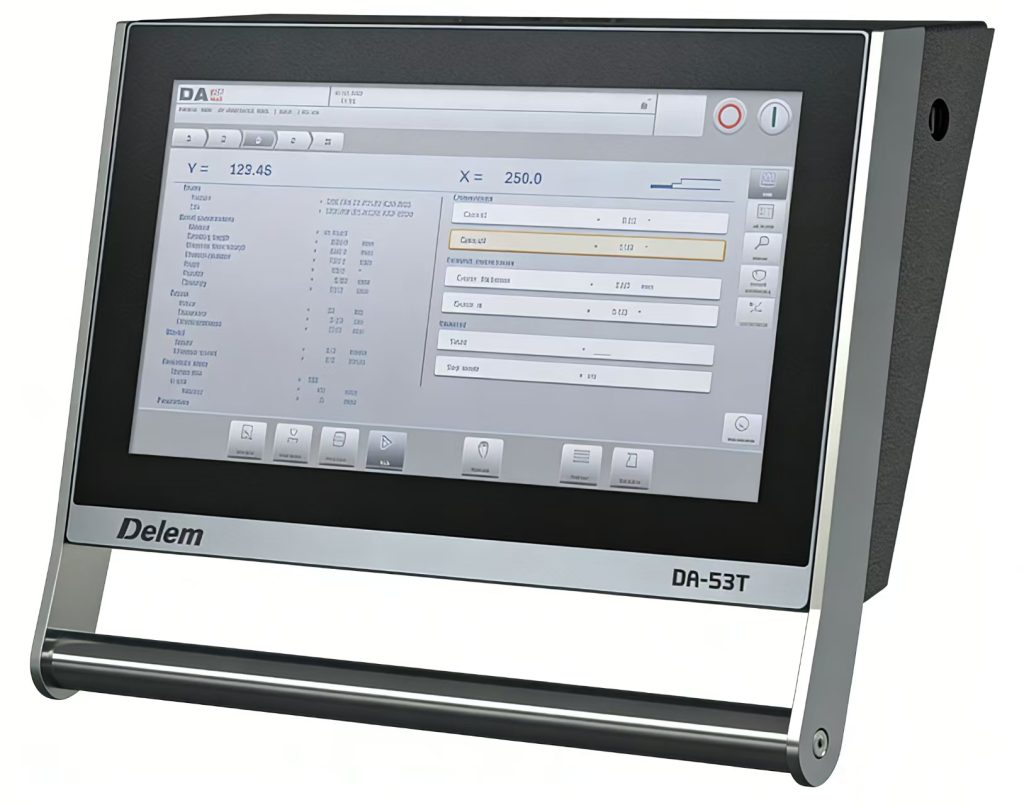

Touch Comfort-CNC DA-53Tx Control System
The new DA-53Tx touch CNC control provides a modern compact and versatile solution for a wide range of press brake applications without compromising machine functionality.Machine adjustment and test bends are reduced to a minimum with a quick and easy program-to-production work sequence.
PRECISION MOTION
Heightened Heavy-Duty Carbon Steel Frame

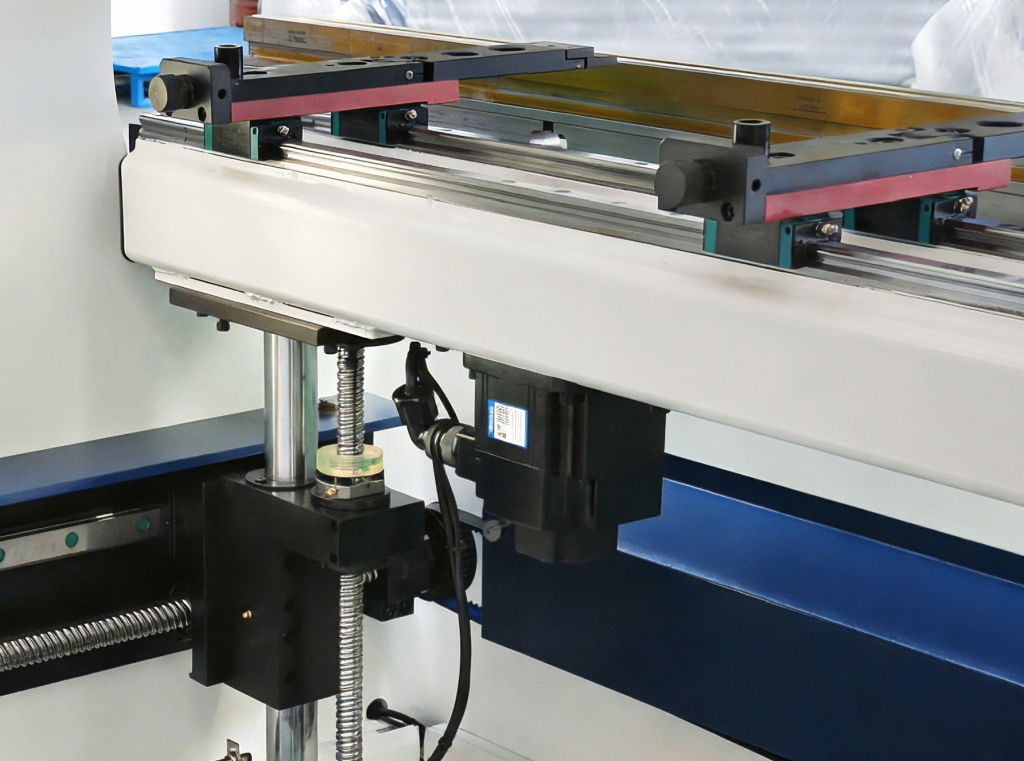

The backgauge system is driven by servo motors for vertical movement. Equipped with high-precision ball screws and linear guides, it ensures smooth, steady and accurate running during bending processing.
Standard: 2 axes(X,R)
*Optional: Expand to 4 axes (X, R, Z1, Z2)
*Optional: Expand to 6 axes (X1, X2, R1, R2, Z1, Z2)
STABLE AND STURDY
Heightened Heavy-Duty Carbon Steel Frame
Built with a weight-reinforced & heightened frame structure, this body is professionally welded from premium carbon steel. Adopting high-temperature tempering treatment to thoroughly eliminate internal welding stress, the whole frame features ultra-high rigidity, strong load-bearing capacity, non-deformation durability and long-term stable operation under heavy-duty bending workloads.
PERFECT SYNCHRONIZATION

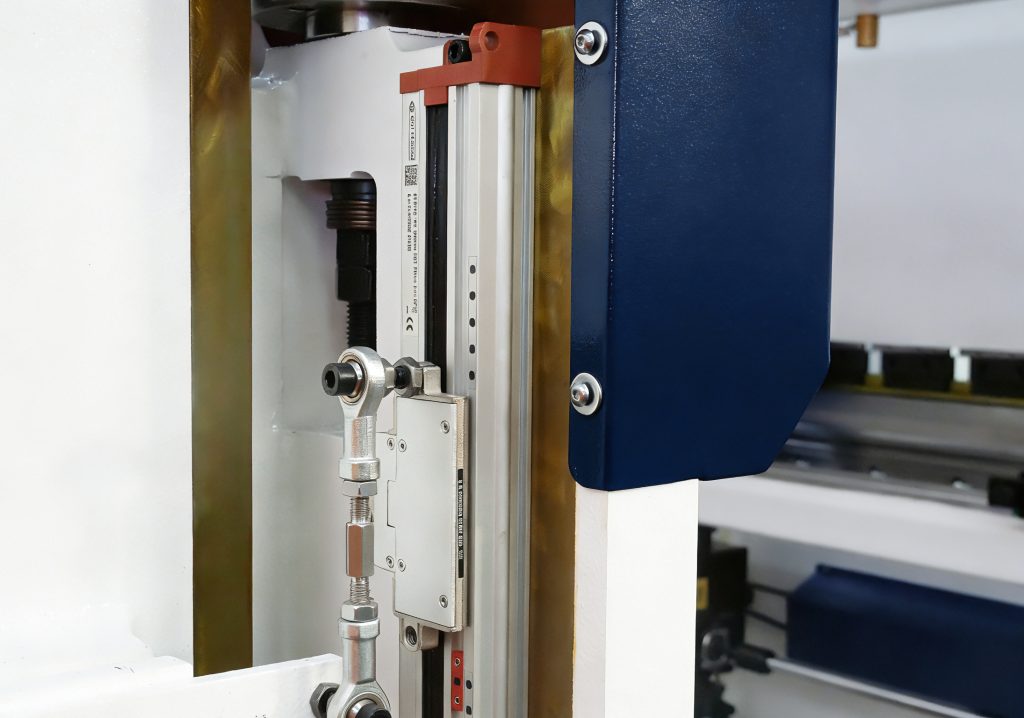

High-Precision Grating Ruler Synchronous Control
This device is equipped with grating ruler that monitors the displacement at both ends in real time. By adjusting the proportional valves of the hydraulic cylinders on both sides at the millisecond level, deviations are eliminated, providing precise position feedback to the CNC system and ensuring stable production of machining tasks.
Related Technologies

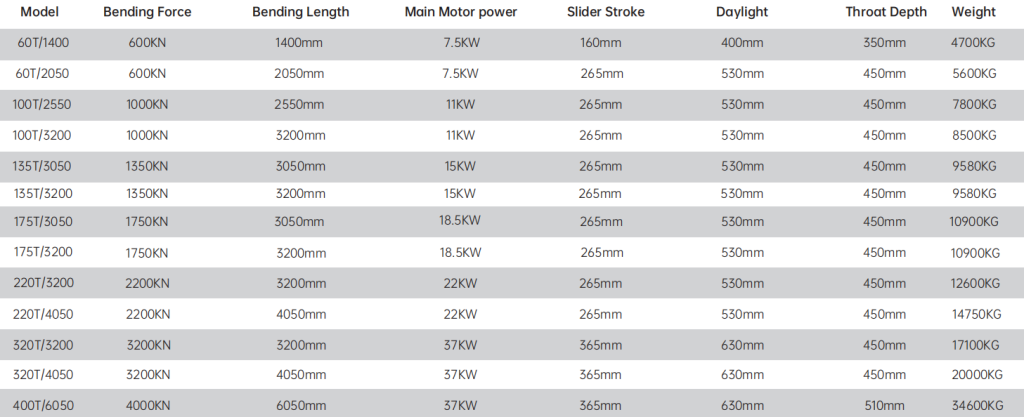

Spec sheet

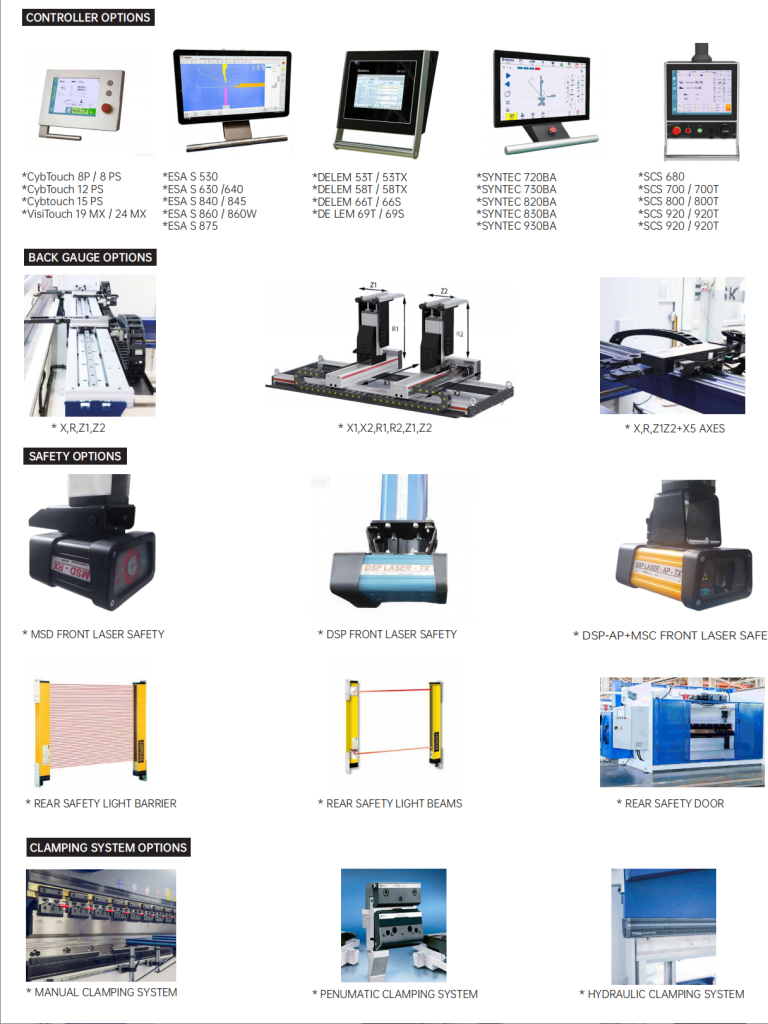

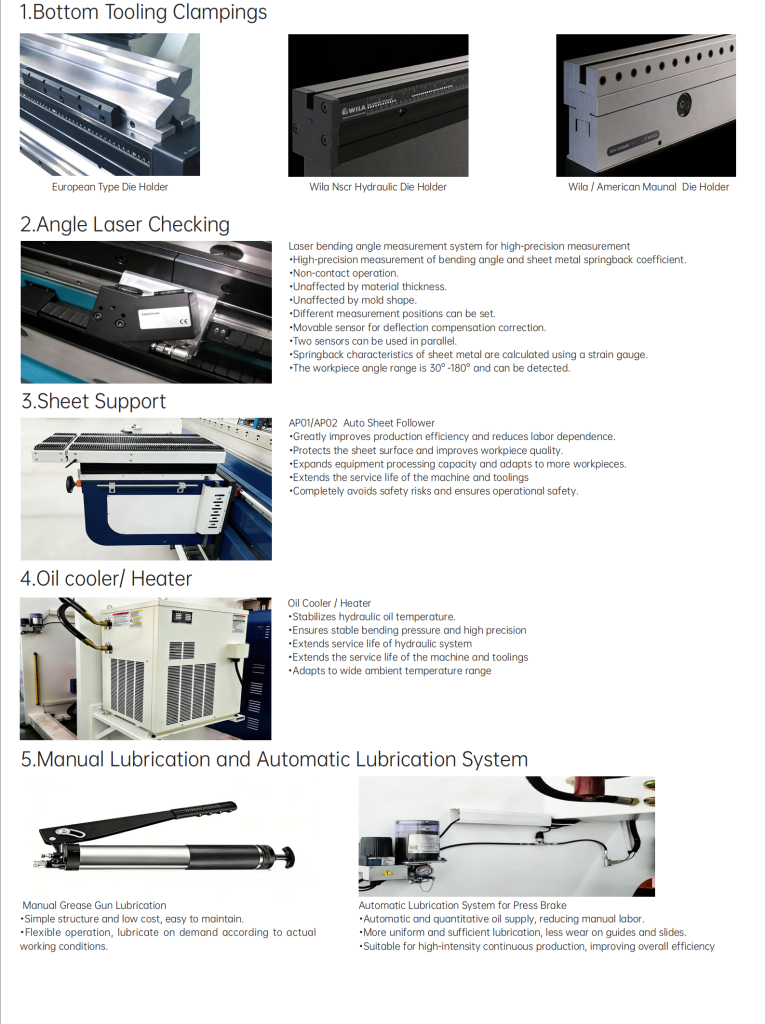

Optional Futures
Related Products
DESKTOP BENDING series
ECO CNC series

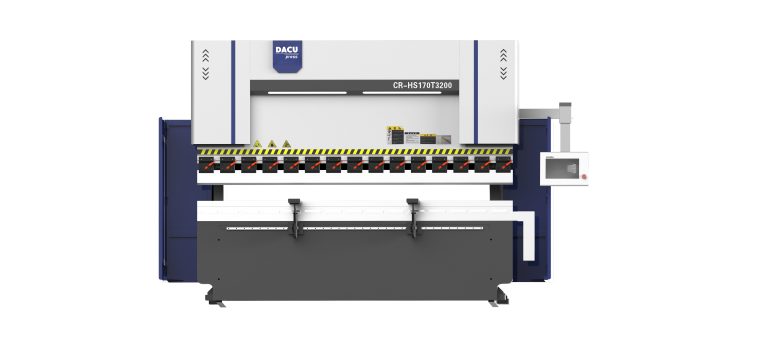

PRO CNC
