PRODUCT OVERVIEW

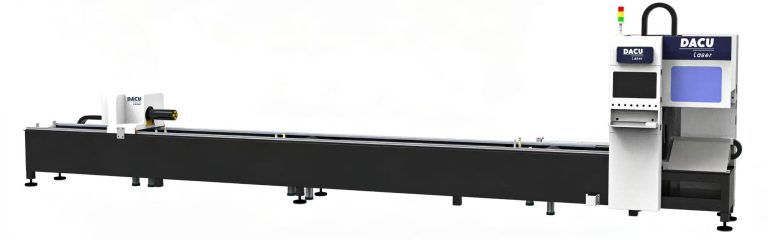

High-Speed Cutting Solution For Small-Diameter Tubes
Equipped with an internationally advanced fiber laser, high-performance double chucks, and high-precision gear racks & linear guides, the TG16-6016A is controlled by a customized CypCut CNC system. As a high-tech product integrating laser cutting, precision machinery and CNC technologies, it specializes in cutting carbon steel, stainless steel, aluminum and other metal pipes (square, round, oval pipes).
Featuring professionalism, high speed, high precision and high efficiency, it is the ideal cutting solution for metal pipe processing.
PNEUMATIC CHUCK
Square-Round Chuck
The square-round chuck serves as an independent rotating spindle for laser tube cutters, enabling fast pneumatic clamping. Its direct cylinder drive provides stable, wide-range clamping and precise software control.
With a simple and reliable structure, it features a low failure rate, low inertia, and low energy consumption. The short axial design minimizes tailings, while the square bore accommodates larger square tubes, expanding the application range and reducing costs.
SAVE YOUR TIME
Semi Auto Loading Or Fully Auto Loading System（Optional）
Reduces manual labor and lowers workforce intensity.
Improves feeding efficiency and overall productivity.
Ensures safer operation and fewer handling risks.
Shortens non-cutting time and boosts machine utilization.
STABLE CUTTING
Front And Rear Tube Supports
Standard equipped with front and rear vari‑pitch supports, anti‑abrasive and durable, adaptable to tubes of various diameters and profiles, effectively reducing cutting deviation caused by vertical tube vibration.
EASY TO USE
High-Performance Cutting System, Cutting Head & Nesting Software
Bochu FSCUT tube cutting system, paired with BLT cutting head and TubePro software, is a high-efficiency bus-based solution for tube processing.
It features adaptive material pulling, anti-empty cutting, one-click flying cutting and optional bevel processing, ensuring high-precision cutting and minimal leftover material.
*Options available: TubesT nesting software, enabling intelligent nesting and common-edge cutting to maximize material utilization.
Related Technologies
Spec sheet

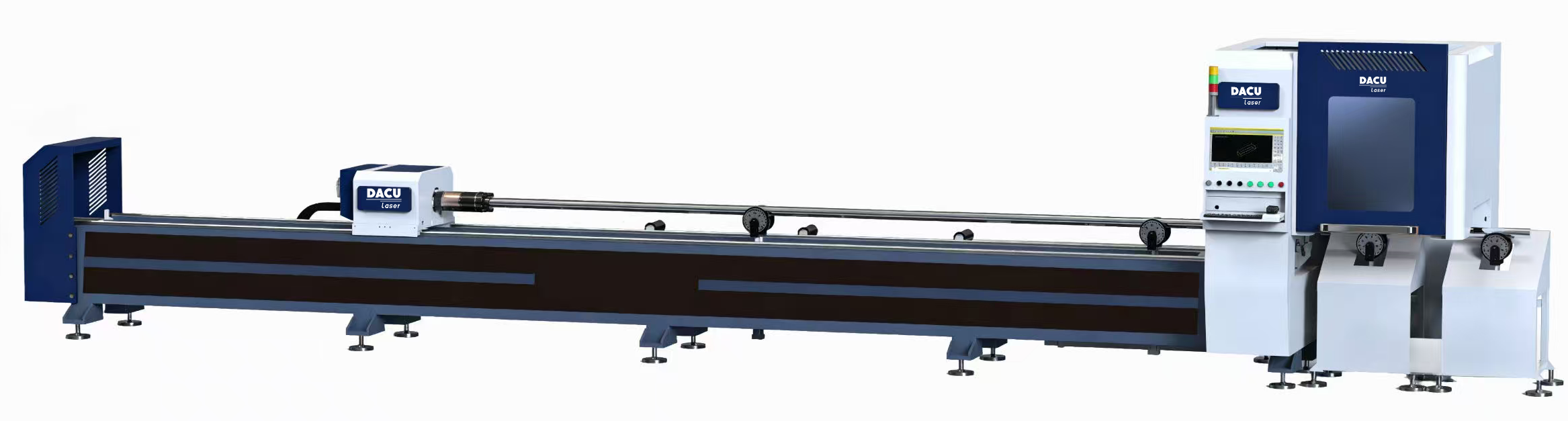

Model
TG24-6024A
Laser Power
1.5-6kW
Cutting Capacity of Round /Square Tube
∅ 10-240mm / □ 10×10-240×240mm
The Range of Tube Length
6500mm
Acceleration
1.2G
Max Loading Capacity (Single)
300kg
